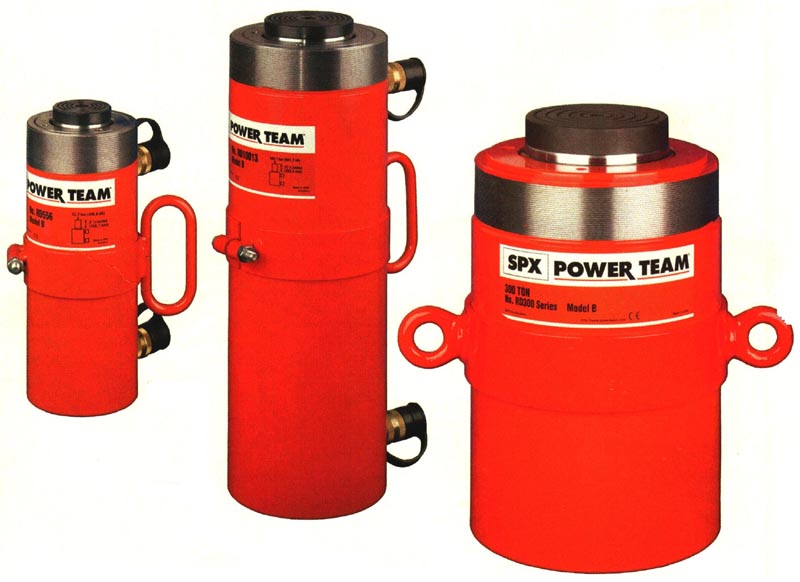

  • High tonnage premium design for high cycle life.
  • Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance.
  • Aluminum bronze overlay bearings provide long life, chrome plated piston rod resist corrosion.
  • Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstands full tonnage.
  • Grooved ring pattern in load cap helps guard against load slippage.
  • Each cylinder has two 9796 3/8 Inch NPTF female half couplers.
  • Built-in safety relief valve prevents accidental over-pressurization of the retract circuit.
  • Feature mounting holes and collar threads.
Unit of Measure

Cylinder Capacity - Push

 N/A 100 tons

Standard Pack Qty

 N/A 1

Cylinder Capacity - Pull

 N/A 44 tons

Stroke

 N/A 6.625 inches

Oil Capacity - Push

 N/A 136.7 cu. inch

Oil Capacity - Pull

 N/A 58.5 cu. inch

Retracted Height - A

 N/A 13 25/32 inches

Extended Height - B

 N/A 20 13/32 inches

Outside Diameter - C

 N/A 6 7/8 inches

Collar Thread - D

 N/A 6 7/8-12 inches

Collar Thread Length - E

 N/A 1 5/8 inches

Base to Port - F

 N/A 1 1/2 inches

Cylinder Top to Port - G

 N/A 2 1/2 inches

Piston Rod Diameter - H

 N/A 3 7/8 inches

Rod Internal Thread and Depth - J

 N/A 2 3/4-12 x 1 5/32 inches

Piston Rod Protrusion - K

 N/A 5/8 inches

Load Cap Diameter

 N/A 3 7/8 inches

Bore Diameter

 N/A 5 1/8 inches

Cylinder Effective Area - Push

 N/A 20.63 sq. inch

Cylinder Effective Area - Pull

 N/A 8.84 sq. inch

Internal Pressure at Cap. - Push

 N/A 9695 psi

Internal Pressure at Cap. - Pull

 N/A 9959 psi

Tons at 10000 psi - Push

 N/A 103.1

Tons at 10000 psi - Pull

 N/A 44.2

Product Weight

 N/A 126 lbs.

Ship Weight

 N/A 142 lbs.
^
