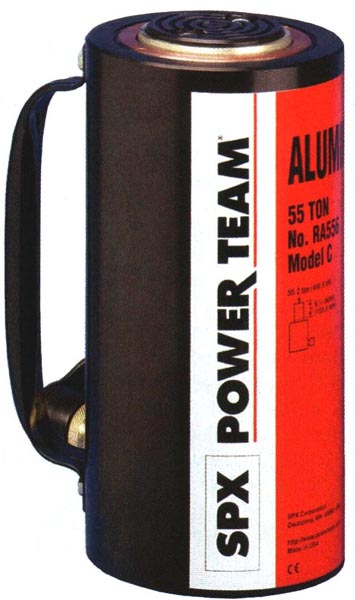

  • RA Series 20-100 Ton, Single-Acting, Spring-Return Aluminum Cylinders
  • Half the weight of equal capacity steel cylinders.
  • Half the weight of steel cylinders.
  • Aluminum body resists sparking in explosive environments.
  • Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
  • Grooved piston top helps keep the load from sliding on top of piston.
  • Designed for jacking and other non- production operations.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Cylinder Capacity

Stroke

Oil Capacity

Cylinder Effective Area

Internal Pressure at Cap.

Price

Add To Cart/Request Quote
N/A 20 tons N/A 2.125 inches N/A 9.41 cu. inch N/A 4.43 sq. inch N/A 9030 psi $1,511.19 Add To Cart
Request Quote
N/A 20 tons N/A 4.125 inches N/A 18.27 cu. inch N/A 4.43 sq. inch N/A 9030 psi $1,587.87 Add To Cart
Request Quote
N/A 20 tons N/A 6.125 inches N/A 27.13 cu. inch N/A 4.43 sq. inch N/A 9030 psi $1,681.74 Add To Cart
Request Quote
N/A 30 tons N/A 2.125 inches N/A 13.79 cu. inch N/A 6.49 sq. inch N/A 9250 psi $1,888.18 Add To Cart
Request Quote
N/A 30 tons N/A 4.125 inches N/A 26.77 cu. inch N/A 6.49 sq. inch N/A 9250 psi $1,958.14 Add To Cart
Request Quote
N/A 30 tons N/A 6.125 inches N/A 39.75 cu. inch N/A 6.49 sq. inch N/A 9250 psi $2,083.13 Add To Cart
Request Quote
N/A 55 tons N/A 2.125 inches N/A 23.50 cu. inch N/A 11.04 sq. inch N/A 9960 psi $2,081.88 Add To Cart
Request Quote
N/A 55 tons N/A 4.125 inches N/A 45.50 cu. inch N/A 11.04 sq. inch N/A 9960 psi $2,384.46 Add To Cart
Request Quote
N/A 55 tons N/A 6.125 inches N/A 67.60 cu. inch N/A 11.04 sq. inch N/A 9960 psi $2,494.43 Add To Cart
Request Quote
N/A 55 tons N/A 10 inches N/A 110.40 cu. inch N/A 11.04 sq. inch N/A 9960 psi $3,851.91 Add To Cart
Request Quote
N/A 100 tons N/A 2.125 inches N/A 43.80 cu. inch N/A 20.62 sq. inch N/A 9696 psi $3,416.25 Add To Cart
Request Quote
N/A 100 tons N/A 6.25 inches N/A 129.00 cu. inch N/A 20.62 sq. inch N/A 9696 psi $4,976.37 Add To Cart
Request Quote
N/A 100 tons N/A 10.25 inches N/A 21.00 cu. inch N/A 20.62 sq. inch N/A 9696 psi $6,073.38 Add To Cart
Request Quote
